5-5179010-4 | AMP

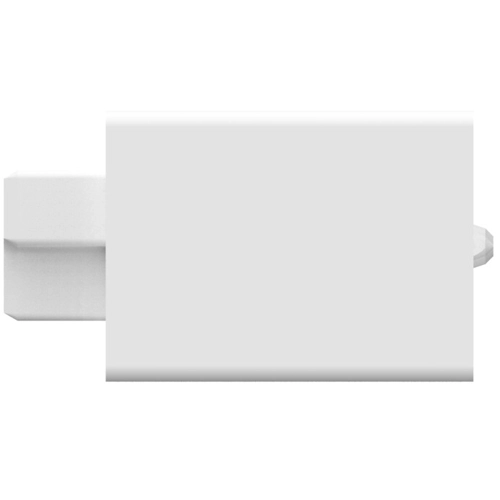

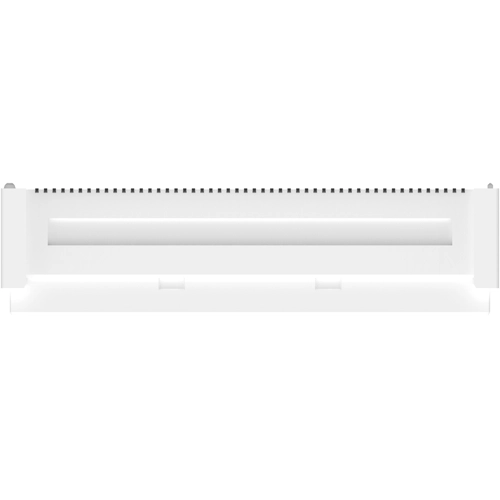

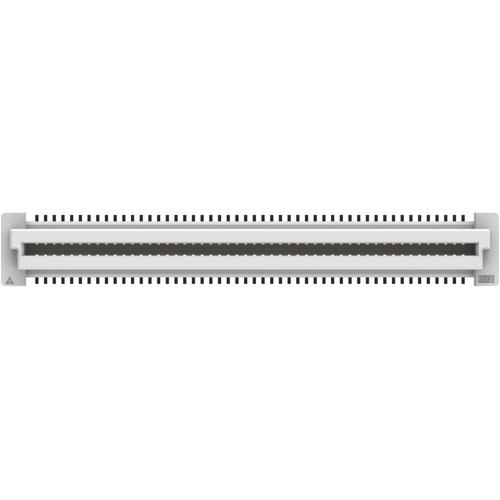

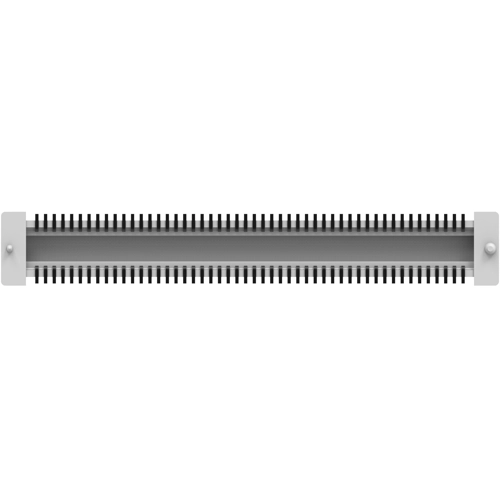

Socket header, 100 pole, pitch 0.8 mm, straight, natural, 5-5179010-4
Unit Price (€ / pc.)
4.3673 € *
Available: 0 pcs.
Available in 5 Days: 7,924 pcs.
Leadtime: 11 Weeks **
PCB Connection System, 5-5179010-4, AMP
Board-to-Board, Printed Circuit Board, Vertical, 100 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Matte
- Housing Color: natural
- Orientation: straight
- Number of positions: 100
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.8 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | SMD | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 100 V | |
| Nennstrom | 500 mA | |
| Orientierung | gerade | |
| Polzahl | 100-polig | |
| Rastermaß | 0.8 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
