5-535541-6 | AMP

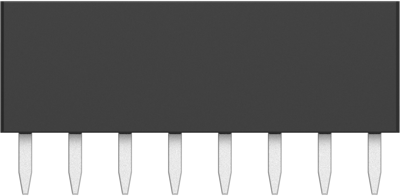

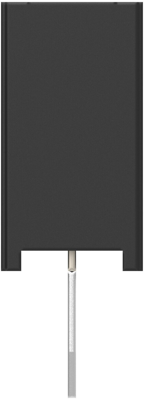

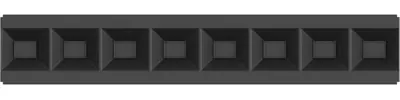

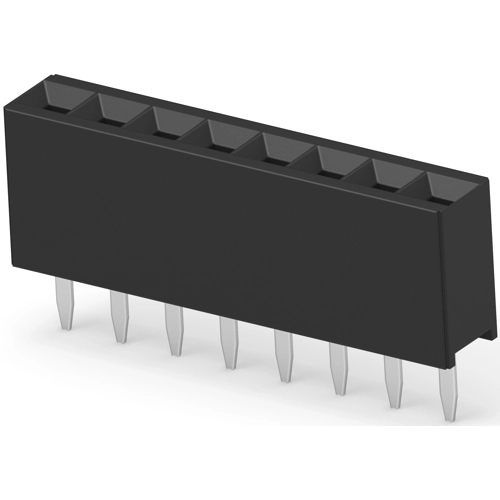

Socket header, 8 pole, pitch 2.54 mm, straight, black, 5-535541-6
Unit Price (€ / pc.)
2.1420 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
10 pcs.
1.9516 €
50 pcs.
1.7612 €
100 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-535541-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 333 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
