5-826947-0 | AMP
Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826947-0
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

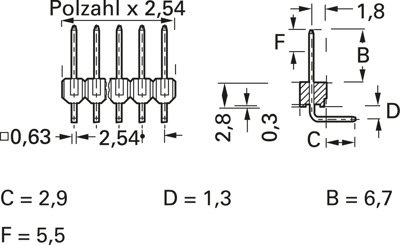

Tinned, pin length B 6.7 mm, type ..-0826.
Type: 5-0826947-0, 50-pole
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Brechbar | Yes | |
| Farbe | grün | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennstrom | 5 A | |
| Orientierung | gerade | |
| Polzahl | 50-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
