5103309-7 | AMP

Pin header, 34 pole, pitch 2.54 mm, straight, black, 5103309-7

Order No.: 56F6181
EAN: 4099891000585
MPN:
5103309-7
0-5103309-7
Series: AMP-LATCH

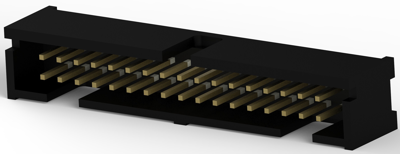

5103309-7 AMP PCB Connection Systems Image 1

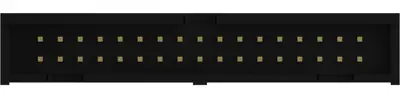

5103309-7 AMP PCB Connection Systems Image 2

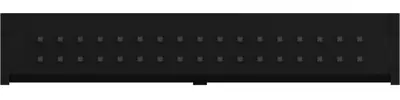

5103309-7 AMP PCB Connection Systems Image 3

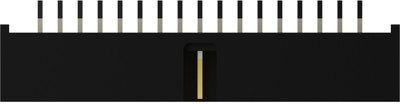

5103309-7 AMP PCB Connection Systems Image 4

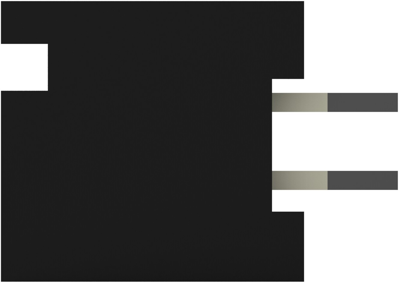

5103309-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.6291 € *
Available: 11 pcs.
Available in 5 Days: 92 pcs.
Leadtime: 6 Weeks **
Total Price:
4.63 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6291 €
10 pcs.
4.2602 €
50 pcs.
3.8794 €
100 pcs.
3.4867 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin headers, short design, type ..-5103309-.

Contacts: tin bronze. The female connectors are delivered ready for operation. Additional available system components: male connectors for insertion in DIP sockets or for direct soldering to printed circuit boards, male connectors for direct soldering to PCBs with 2.54 mm grid and also cable-to-board connectors for direct insertion on PCB traces. Number of poles: 10 to 64. Operating current: max. 1.0 A. Dielectric strength: 500 VAC. Operating temperatures: - 55 to +105 °C. Standards and certifications: DIN 41651, 41611 T6, ULE 28476, MiL-C-83503.

With reduced mounting height and center polarization. Made of nylon, glass fiber-reinforced, black, to UL 94 V-0; Contacts: in the mating area gold-plated on nickel primer, tinned on nickel primer in the soldering area. Grid: 2.54 x 2.54 mm. Locking/release levers cannot be used.

Technical attributes (type, number of poles, dimensions A/B): 0-5103309-7, 34-pole, A 50.8 mm/B 40.64 mm

Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 1 A
Orientierung gerade
Polzahl 34-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
