5146893-1 | AMP

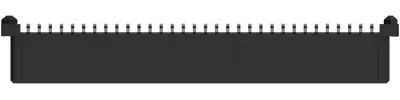

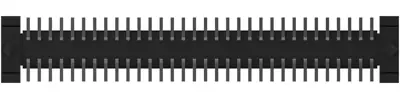

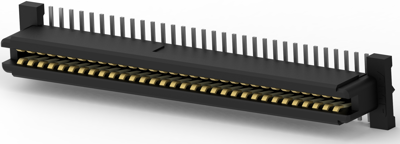

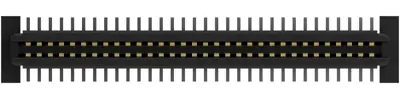

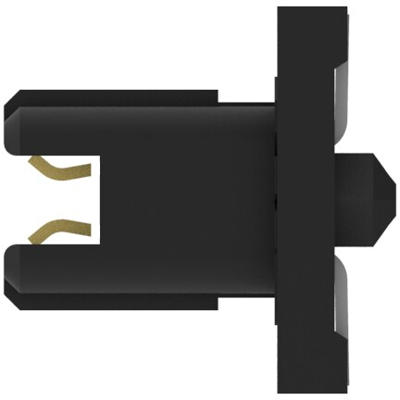

Socket header, 64 pole, pitch 1 mm, straight, black, 5146893-1
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 5 Days: 6,500 pcs.
Leadtime: 10 Weeks **
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
650 pcs.
3.3558 €
6500 pcs.
3.2963 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5146893-1, AMP
Board-to-Board, Printed Circuit Board, Vertical, 64 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 64
- Operating Temperature Range: -55 – 110 °C [-67 – 230 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 1 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 64 pole | |
| Grid | 1 mm |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
