5499786-1 | AMP

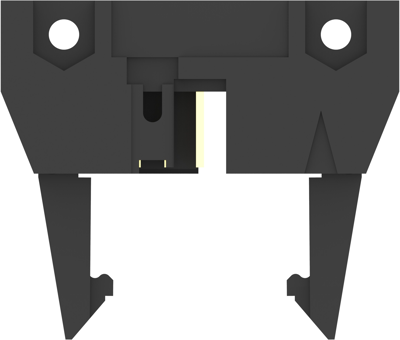

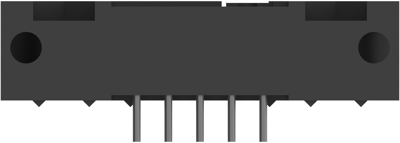

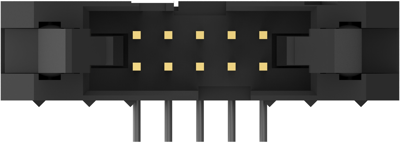

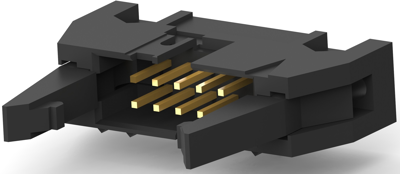

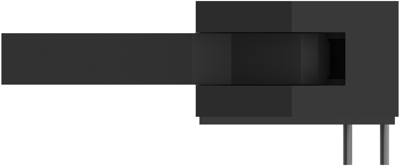

Pin header, 10 pole, pitch 2.54 mm, straight, black, 5499786-1
Unit Price (€ / pc.)
2.2253 € *
Available: 0 pcs.
Available in 5 Days: 72 pcs.
Leadtime: 10 Weeks **
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
40 pcs.
2.2253 €
250 pcs.
1.8564 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5499786-1, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Glass Filled Nylon/Polyester
- Housing Color: black
- Orientation: angled
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 10-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
