5532430-5 | AMP

Pin header, 60 pole, pitch 2.54 mm, straight, natural, 5532430-5

Order No.: 36P5064
EAN: 4099889941357
MPN:
5532430-5
Series: AMP-HDI

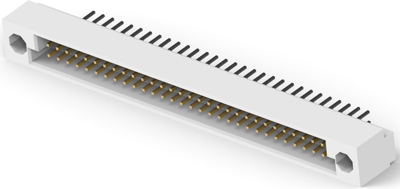

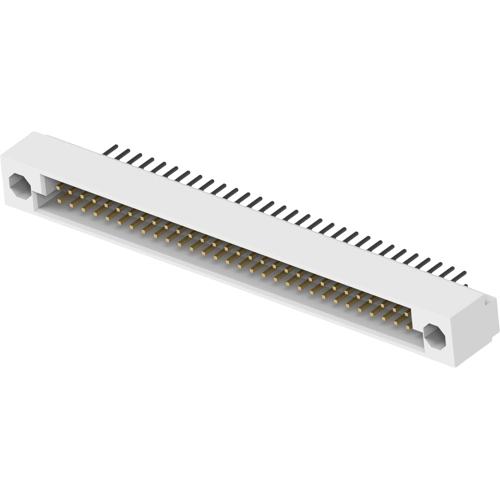

5532430-5 AMP PCB Connection Systems Image 1
5532430-5 AMP PCB Connection Systems Image 2
5532430-5 AMP PCB Connection Systems Image 3
5532430-5 AMP PCB Connection Systems Image 4
5532430-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
9.163 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
Total Price:
2,474.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
270 pcs.
9.163 €

PCB Connection System, 5532430-5, AMP

Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 60 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Orientation: straight
  • Number of positions: 60
  • Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennstrom 3 A
Orientierung gerade
Polzahl 60-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
