5536507-1 | AMP

Socket header, 24 pole, pitch 2 mm, straight, natural, 5536507-1

Order No.: 37P3531
EAN: 4099889954302
MPN:
5536507-1
Series: Z-PACK

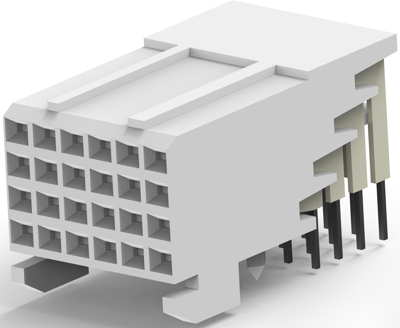

5536507-1 AMP PCB Connection Systems Image 1

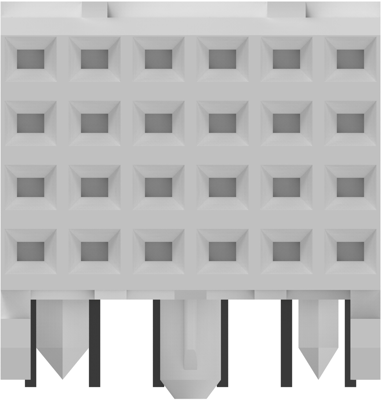

5536507-1 AMP PCB Connection Systems Image 2

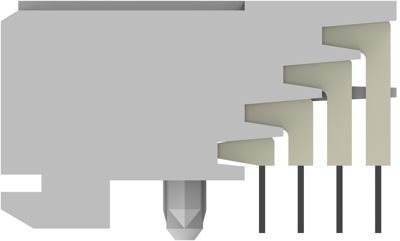

5536507-1 AMP PCB Connection Systems Image 3

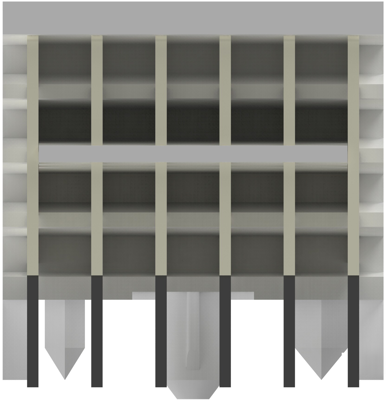

5536507-1 AMP PCB Connection Systems Image 4

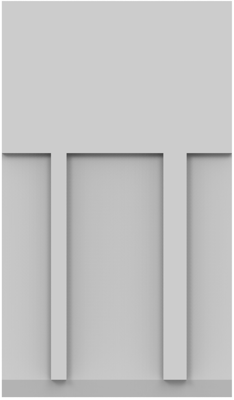

5536507-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.5101 € *
Available: 0 pcs.
Available in 5 Days: 320 pcs.
Leadtime: 11 Weeks **
Total Price:
4.51 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5101 €
10 pcs.
4.1531 €
50 pcs.
3.7366 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
**Subject to prior sale

Hard Metric Backplane Connectors, 5536507-1, AMP

PCB Connector Assembly Type: PCB Mount Receptacle, Connector System: Board-to-Board, Sealable: Yes, Connector & Contact Terminates To: Printed Circuit Board, Number of Columns: 6, Number of Rows: 4, Number of Pairs: 0, Backplane Architecture: Traditional Backplane, Number of Positions: 24, Data Rate: ≤1 Gb/s, CompactPCI Designation: None, Contact Mating Area Plating Material: Gold (Au), Contact Mating Area Plating Material Thickness: , Contact Current Rating (Max): 1 A, Connector Mounting Type: Board Mount, Centerline (Pitch): 1.98 mm, Housing Color: Gray, Gray, Operating Temperature Range: -55 – 125 °C, Circuit Application: Signal, AdvancedTCA Specified Product: No, Packaging Method: Tube

Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 4
Ausführung Buchsenleiste
Bestückung bestückt
Farbe natur
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennspannung 30 V
Nennstrom 3 A
Orientierung gerade
Polzahl 24-polig
Rastermaß 2 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
