6-103904-4 | AMP

Pin header, 15 pole, pitch 2.54 mm, straight, black, 6-103904-4

Order No.: 37P6854
EAN: 4099889963489
MPN:
6-103904-4

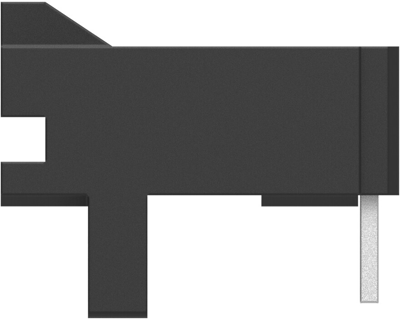

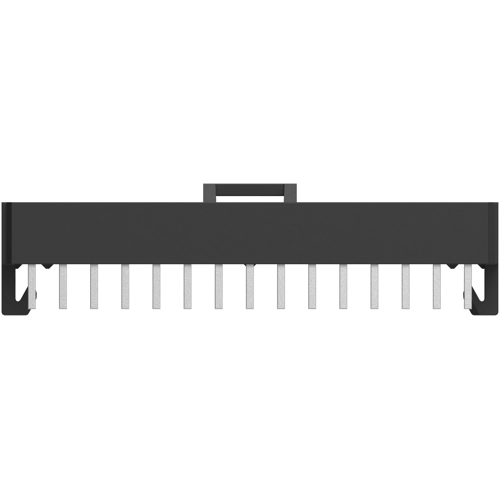

6-103904-4 AMP PCB Connection Systems Image 1

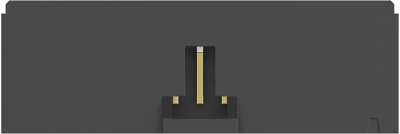

6-103904-4 AMP PCB Connection Systems Image 2

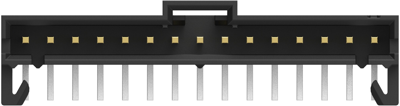

6-103904-4 AMP PCB Connection Systems Image 3

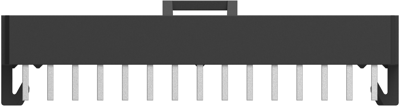

6-103904-4 AMP PCB Connection Systems Image 4

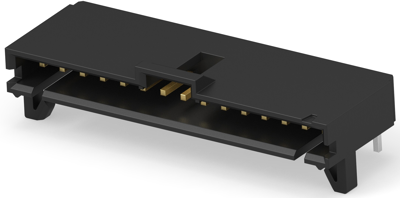

6-103904-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.7600 € *
Available: 0 pcs.
Available in 5 Days: 502 pcs.
Leadtime: 33 Weeks **
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7600 €
10 pcs.
4.3792 €
50 pcs.
3.9389 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 6-103904-4, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 15
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennstrom 3 A
Orientierung gerade
Polzahl 15-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
