6-146304-2 | AMP

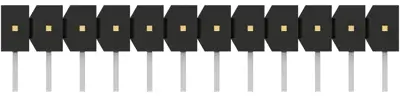

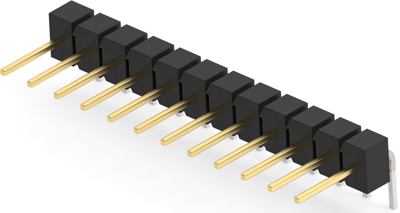

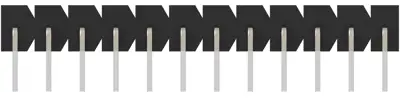

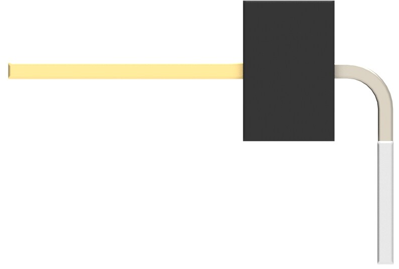

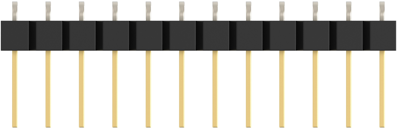

Pin header, 12 pole, pitch 2.54 mm, angled, black, 6-146304-2
Unit Price (€ / pc.)
6.3427 € *
Available: 0 pcs.
Available in 5 Days: 475 pcs.
Leadtime: 25 Weeks **
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.8429 €
50 pcs.
5.2598 €
100 pcs.
4.7243 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 6-146304-2, AMP
PCB Mount header, Right angle, Board-to-Board, 12 Position, 2.54 mm .1 in Centerline, Breakaway, Gold, Through Hole-Solder.
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | Zinn-Blei | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated current | 3 A | |
| Orientation | abgewinkelt | |
| Pin number | 12-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
