6-440054-2 | AMP

Pin header, 2 pole, pitch 2 mm, straight, black, 6-440054-2

Order No.: 37P1035
EAN: 4099889951448
MPN:
6-440054-2

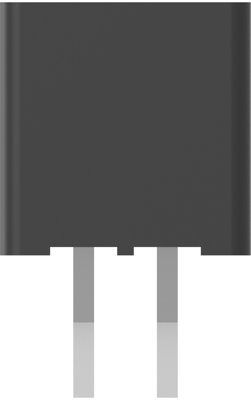

6-440054-2 AMP PCB Connection Systems Image 1

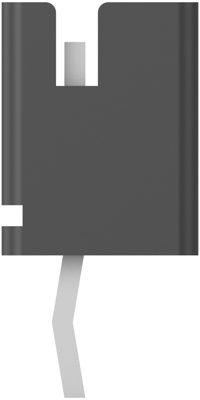

6-440054-2 AMP PCB Connection Systems Image 2

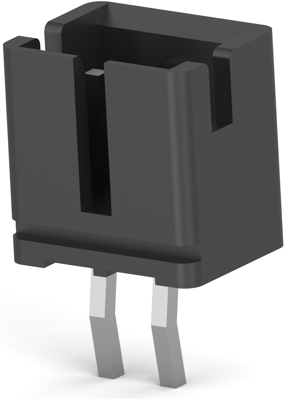

6-440054-2 AMP PCB Connection Systems Image 3

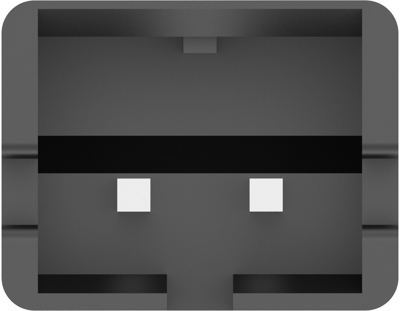

6-440054-2 AMP PCB Connection Systems Image 4

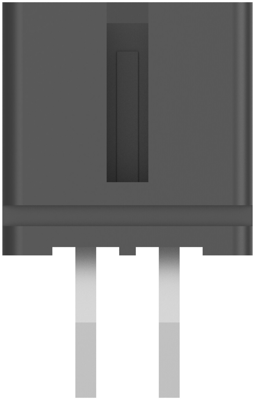

6-440054-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0345 € *
Available: 0 pcs.
Available in 5 Days: 35,103 pcs.
Leadtime: 10 Weeks **
Total Price:
207.06 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.0345 €
15000 pcs.
0.0298 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 6-440054-2, AMP

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66 GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Connection Lötstift
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface verzinnt
Rated voltage 250 V
Rated current 3 A
Orientation gerade
Pin number 2-polig
Grid 2 mm
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
