6-440129-2 | AMP

Socket housing, 2 pole, pitch 2 mm, straight, black, 6-440129-2

Order No.: 37P1036
EAN: 4099889951455
MPN:
6-440129-2

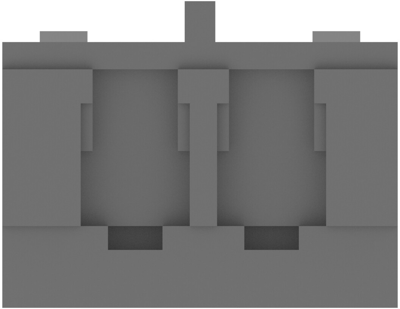

6-440129-2 AMP PCB Connection Systems Image 1

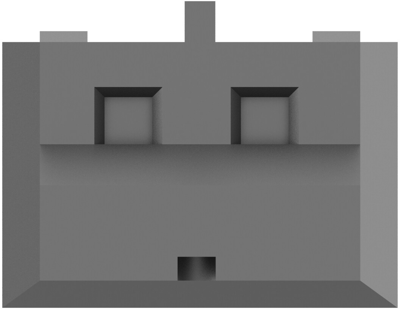

6-440129-2 AMP PCB Connection Systems Image 2

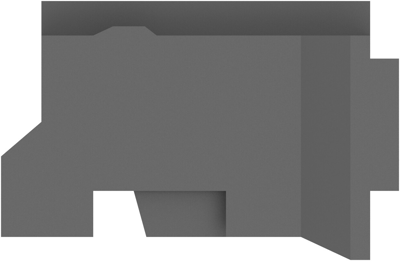

6-440129-2 AMP PCB Connection Systems Image 3

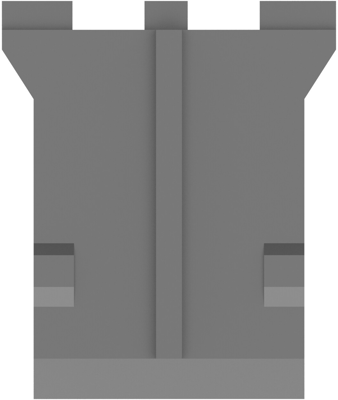

6-440129-2 AMP PCB Connection Systems Image 4

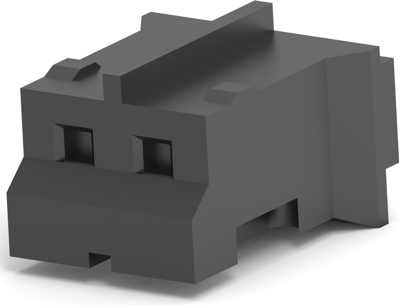

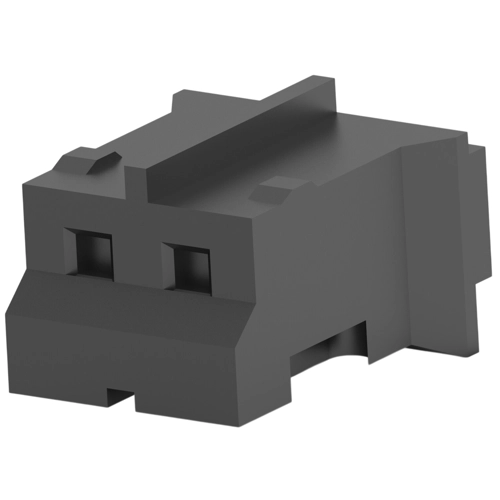

6-440129-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0464 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0464 €
100 pcs.
0.0417 €
500 pcs.
0.0369 €
1000 pcs.
0.0333 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 6-440129-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 2
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 250 V
Nennstrom 3 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 2 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85389011
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
