6-534206-5 | AMP

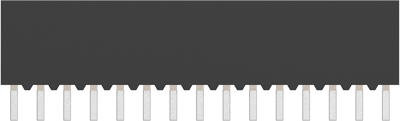

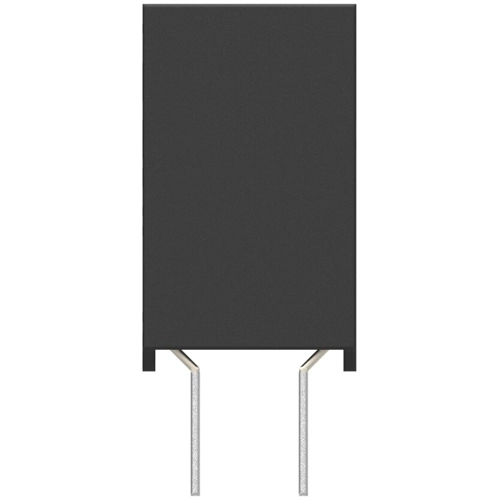

Socket header, 30 pole, pitch 2.54 mm, straight, black, 6-534206-5
Unit Price (€ / pc.)
9.6747 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
9.67 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6747 €
10 pcs.
8.9012 €
50 pcs.
8.0087 €
100 pcs.
7.1995 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 6-534206-5, AMP
Board-to-Board, Printed Circuit Board, Vertical, 30 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 30
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 333 V | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 30-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
