6-87160-3 | AMP

Pin header, 12 pole, pitch 3.96 mm, straight, black, 6-87160-3

Order No.: 37P5840
EAN: 4099889958119
MPN:
6-87160-3
6-87160-3 AMP PCB Connection Systems

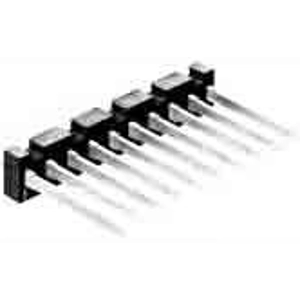

Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
1,267.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
2.5347 €

Male connector, 6-87160-3, AMP

PCB Connector Assembly Type: PCB Mount Header, Header Type: Breakaway, Connector & Contact Terminates To: Printed Circuit Board, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Vertical, Number of Positions: 12, Contact Resistance: 12 mΩ, Contact Base Material: Brass, Contact Mating Area Plating Material: Tin, Contact Mating Area Plating Material Thickness: , Contact Type: Pin, Contact Current Rating (Max): 5 A, Termination Post & Tail Length: 3.18 mm, Termination Method to Printed Circuit Board: Through Hole - Solder, Mating Alignment: With, Mating Alignment Type: Keyed, PCB Mount Retention: Without, Centerline (Pitch): 3.96 mm, Housing Color: Black, Housing Material: Thermoplastic, PCB Thickness (Recommended): 1.79 mm, Operating Temperature Range: -65 – 60 °C, Approved Standards: CSA LR16455,UL E28476, UL Flammability Rating: UL 94V-0, Packaging Quantity: 50, Packaging Method: Carton

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated current 5 A
Orientation straight
Pin number 12 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
