640251-7 | AMP

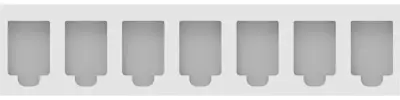

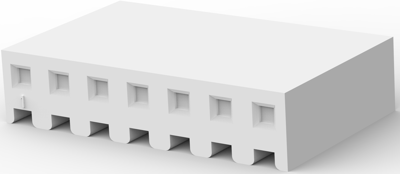

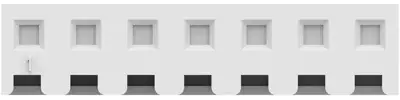

Socket housing, 7 pole, pitch 3.96 mm, straight, natural, 640251-7
Unit Price (€ / pc.)
0.1940 € *
Available: 0 pcs.
Available in 5 Days: 7,888 pcs.
Leadtime: 24 Weeks **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
550 pcs.
0.1940 €
2600 pcs.
0.1928 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 640251-7, AMP
Wire-to-Board, Wire & Cable, 7 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon - GF
- Housing Color: natural
- Number of positions: 7
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 6.5 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 250 V | |
| Nennstrom | 6.5 A | |
| Orientierung | gerade | |
| Polzahl | 7-polig | |
| Rastermaß | 3.96 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
