640385-8 | AMP

Pin header, 8 pole, pitch 3.96 mm, straight, natural, 640385-8

Order No.: 35P1071
EAN: 4099889922073
MPN:
640385-8
Series: MTA-156

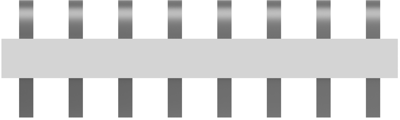

640385-8 AMP PCB Connection Systems Image 1

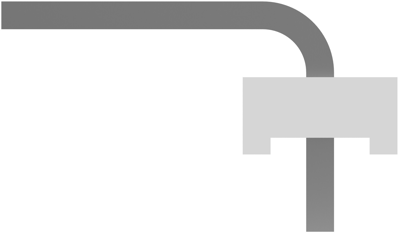

640385-8 AMP PCB Connection Systems Image 2

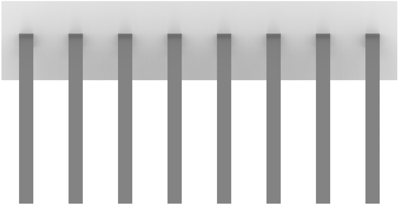

640385-8 AMP PCB Connection Systems Image 3

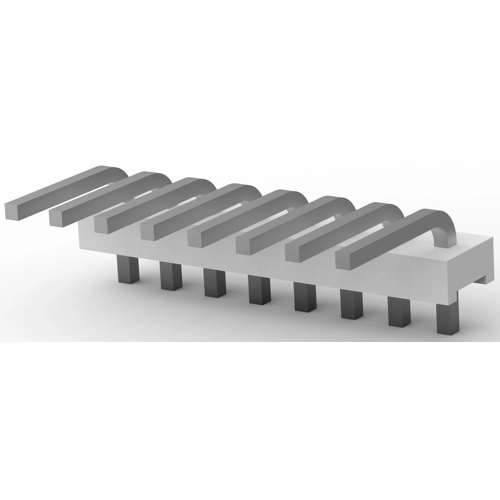

640385-8 AMP PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
880.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.4403 €

PCB Connection System, 640385-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 600 V
Nennstrom 7 A
Orientierung gerade
Polzahl 8-polig
Rastermaß 3.96 mm
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
