640389-8 | AMP

Pin header, 8 pole, pitch 3.96 mm, straight, natural, 640389-8

Order No.: 35P1072
EAN: 4099889922080
MPN:
640389-8
Series: MTA-156

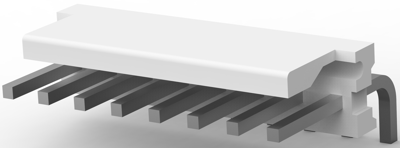

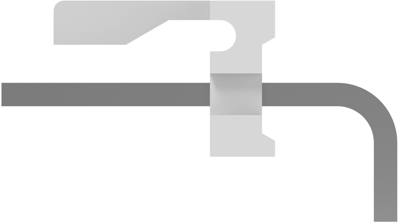

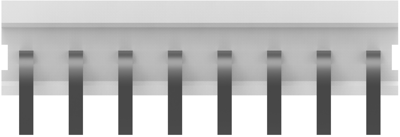

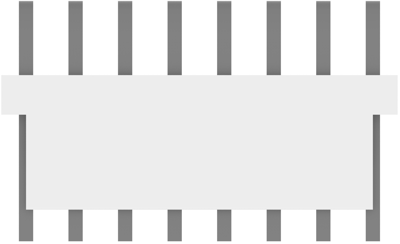

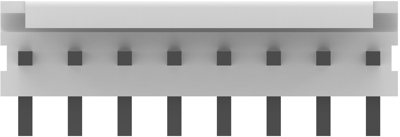

640389-8 AMP PCB Connection Systems Image 1
640389-8 AMP PCB Connection Systems Image 2
640389-8 AMP PCB Connection Systems Image 3
640389-8 AMP PCB Connection Systems Image 4
640389-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
1.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.071 €

PCB Connection System, 640389-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Lötstift
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour natur
Contact type Stift
contact surface verzinnt
Rated voltage 600 V
Rated current 7 A
Orientation gerade
Pin number 8-polig
Grid 3.96 mm
Type of locking Ja
Logistics
Country of origin JP
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
