640454-2 | AMP

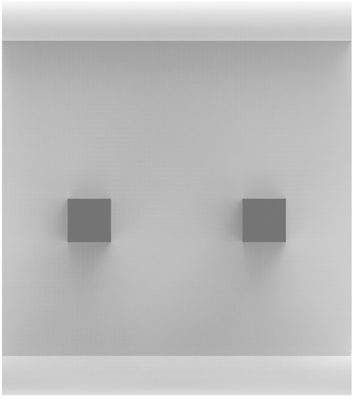

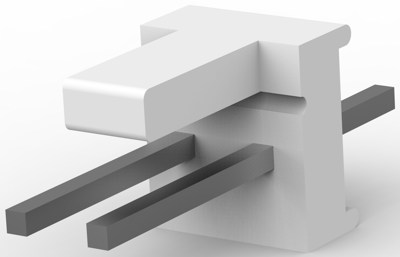

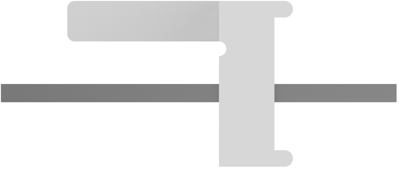

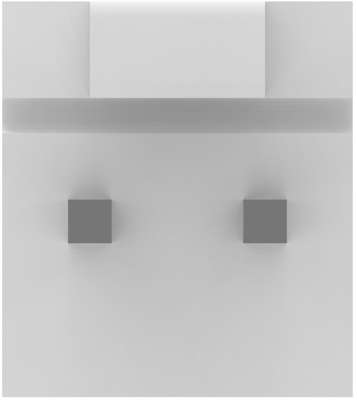

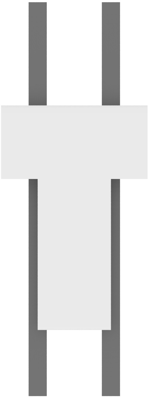

Pin header, 2 pole, pitch 2.54 mm, straight, natural, 640454-2
Unit Price (€ / pc.)
0.1630 € *
Available: 949 pcs.
Available in 5 Days: 40,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1630 €
100 pcs.
0.1440 €
500 pcs.
0.1226 €
1000 pcs.
0.1000 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 640454-2, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | gerade | |
| Polzahl | 2-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
