640456-7 | AMP

Pin header, 7 pole, pitch 2.54 mm, straight, natural, 640456-7

Order No.: 35P1756
EAN: 4099889927764
MPN:
640456-7
Series: MTA-100

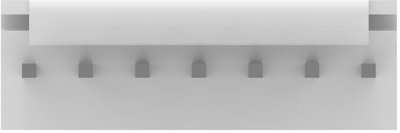

640456-7 AMP PCB Connection Systems Image 1

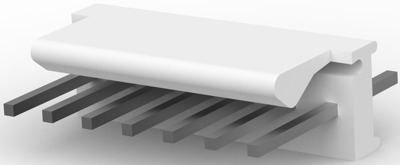

640456-7 AMP PCB Connection Systems Image 2

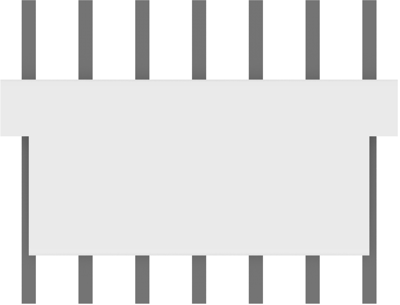

640456-7 AMP PCB Connection Systems Image 3

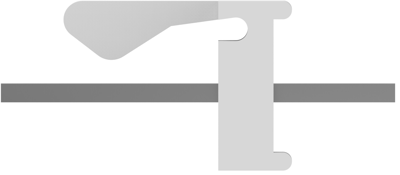

640456-7 AMP PCB Connection Systems Image 4

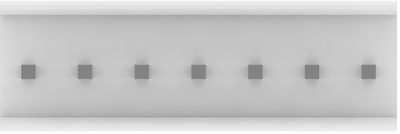

640456-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Available in 5 Days: 15,576 pcs.
Leadtime: 17 Weeks **
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4760 €
50 pcs.
0.4284 €
100 pcs.
0.3689 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 640456-7, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 7
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 5 A
Orientierung gerade
Polzahl 7-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
