641646-2 | AMP
Connector, 641646-2
Unit Price (€ / pc.)
0.0785 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.0785 €
6000 pcs.
0.0738 €
*incl. VAT plus shipping costs
**Subject to prior sale

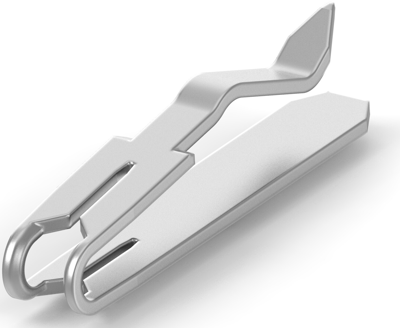

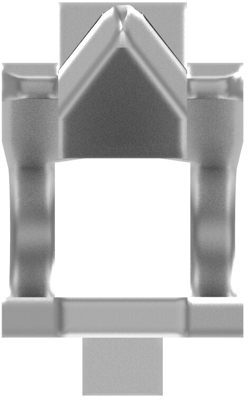

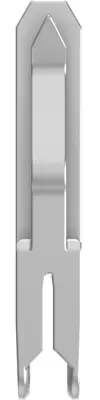

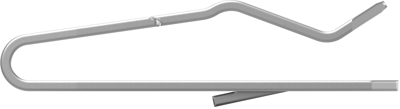

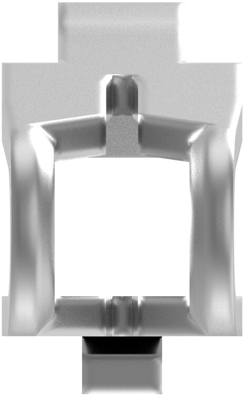

Connector assembly, 641646-2, AMP
The 641646-2 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Connection | IDC connection | |
| Connection plating | pre-tinned | |
| Version | connector | |
| Additional parts | equipped | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
