644042-4 | AMP

Socket header, 4 pole, pitch 2.54 mm, angled, red, 644042-4

Order No.: 35P1991
EAN: 4099889929621
MPN:
644042-4

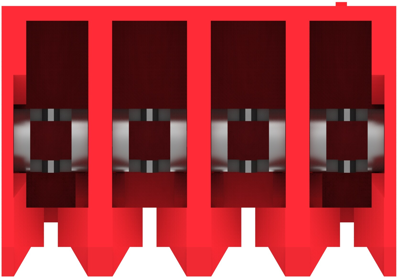

644042-4 AMP PCB Connection Systems Image 1

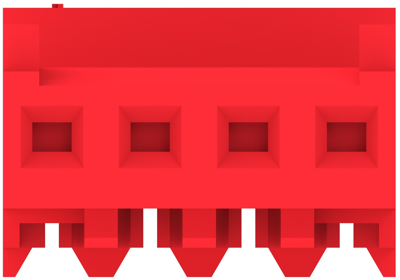

644042-4 AMP PCB Connection Systems Image 2

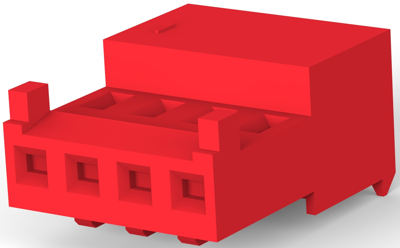

644042-4 AMP PCB Connection Systems Image 3

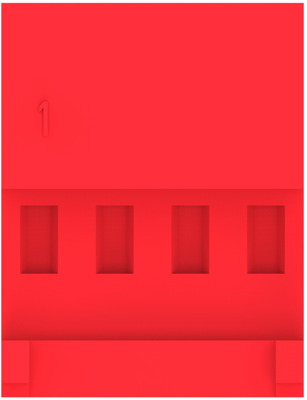

644042-4 AMP PCB Connection Systems Image 4

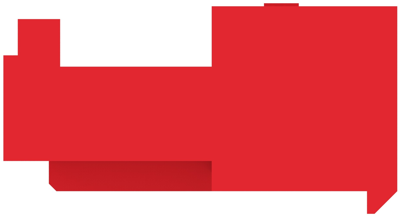

644042-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: 38 Weeks **
Total Price:
22,848.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
1.5232 €

PCB Connection System, 644042-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection Schneidklemmanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsenleiste
Additional parts bestückt
Colour rot
Contact type Buchse
contact surface vergoldet
Rated voltage 250 V
Rated current 5 A
Orientation abgewinkelt
Pin number 4-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
