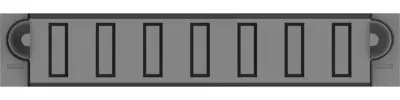

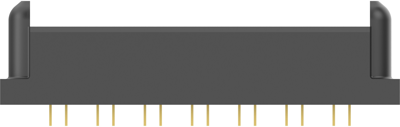

6450863-5 | AMP
Socket header, 7 pole, pitch 7.62 mm, straight, black, 6450863-5
Unit Price (€ / pc.)
9.6985 € *
Available: 0 pcs.
Available in 5 Days: 23 pcs.
Leadtime: 11 Weeks **
Total Price:
9.70 € *
Price list
Quantity
Price per unit*
10 pcs.
9.6985 €
45 pcs.
9.5200 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 6450863-5, AMP
Board-to-Board, Printed Circuit Board, Vertical, 7 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 7
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Rated current: 50 A
- Centerline (Pitch): 7.62 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Anschluss | Press-fit | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 300 V | |
| Nennstrom | 50 A | |
| Orientierung | gerade | |
| Polzahl | 7-polig | |
| Rastermaß | 7.62 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
