647306-2 | AMP

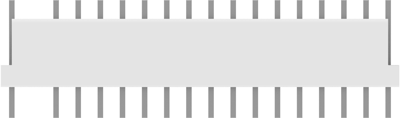

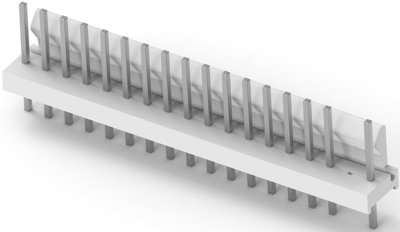

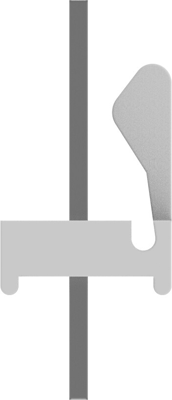

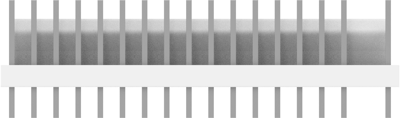

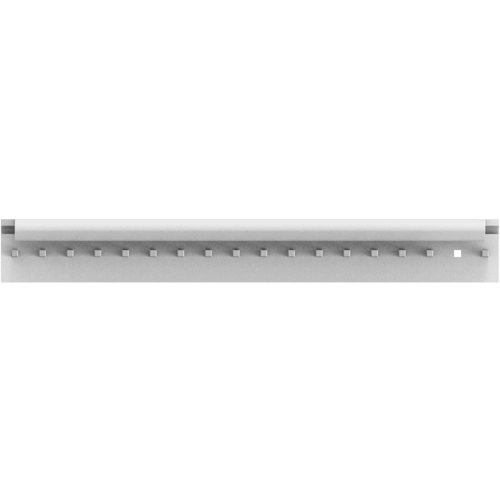

Pin header, 18 pole, pitch 2.54 mm, straight, natural, 647306-2
Order No.: 35P1868
EAN: 4099889928754
MPN:
647306-2
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Available in 5 Days: 3,758 pcs.
Leadtime: 20 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
10 pcs.
1.5113 €
50 pcs.
1.3566 €
100 pcs.
1.2257 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 647306-2, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 18 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 18
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 18-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
