7-215079-8 | AMP
Socket header, 8 pole, pitch 1.27 mm, straight, red, 7-215079-8
Unit Price (€ / pc.)
1.3923 € *
Available: 1,498 pcs.
Next delivery: 1,500 pcs. on 2025-04-28
Leadtime: 39 Weeks **
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
25 pcs.
1.1662 €
100 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Female connectors, straight, type ..-0215079.
For PCB mounting.

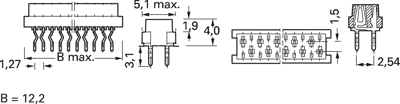

Technical attributes (type, number of poles, dimension B): 7-0215079-8, 8-pole, B 12.2 mm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | rot | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 100 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 1.27 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
