7-215083-4 | AMP

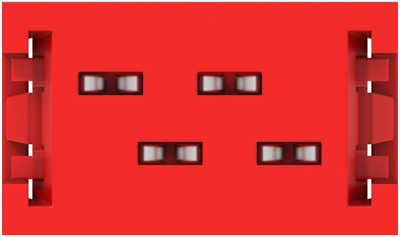

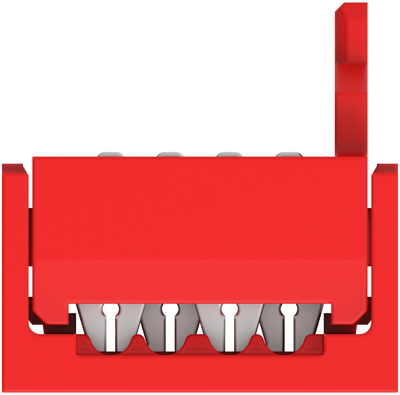

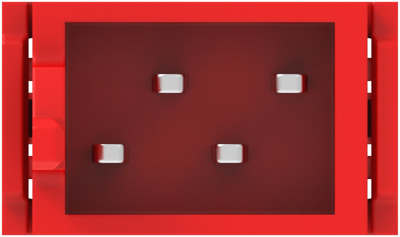

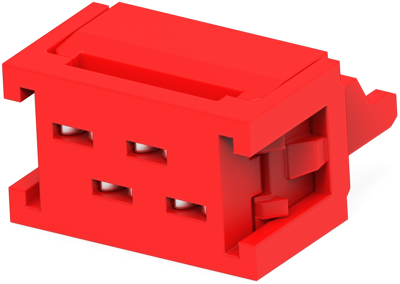

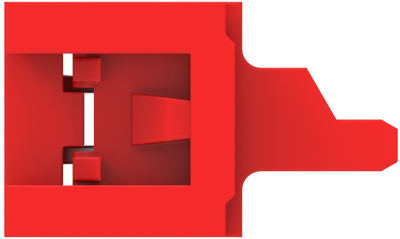

Pin header, 4 pole, pitch 1.27 mm, straight, red, 7-215083-4
Unit Price (€ / pc.)
0.9996 € *
Available: 2,395 pcs.
Available in 5 Days: 7,000 pcs.
Leadtime: 24 Weeks **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
100 pcs.
0.8806 €
250 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Male-on-wire connectors.
Technical attributes (type, number of poles, dimension A): 7-0215083-4, 4-pole, A 8.6 mm
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 1.27 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
