7-215464-6 | AMP
Pin header, 6 pole, pitch 1.27 mm, straight, red, 7-215464-6
Unit Price (€ / pc.)
2.3800 € *
Available: 93 pcs.
Available in 5 Days: 2,000 pcs.
Leadtime: 16 Weeks **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1896 €
50 pcs.
1.9873 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Sub-D PCB male connectors, male, straight, type ..-0215464.
For PCB mounting.

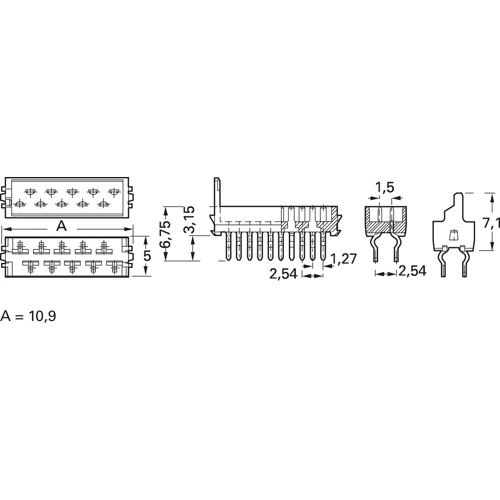

Technical attributes (type, number of poles, dimension A): 7-0215464-6, 6-pole, A 10.9 mm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | rot | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 100 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 1.27 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
