770020-1 | AMP

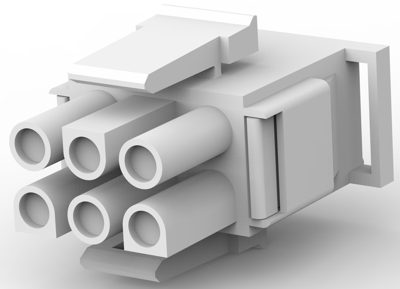

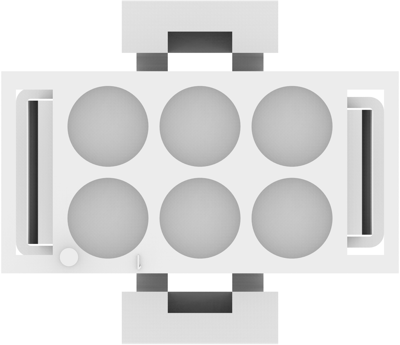

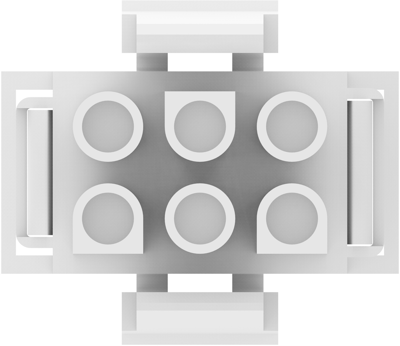

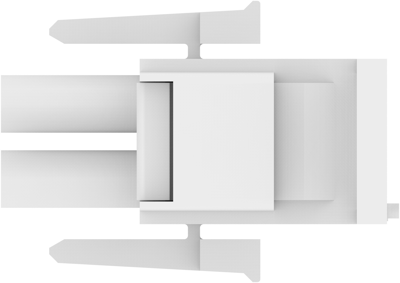

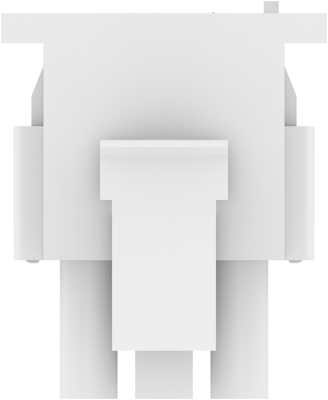

Plug housing, 6 pole, pitch 6.35 mm, straight, white, 770020-1
Unit Price (€ / pc.)
1.4875 € *
Available: 65 pcs.
Leadtime: On Request **
PCB Connection System, 770020-1, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: Nylon GF
- Housing Color: white
- Number of positions: 6
- Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | white | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Rated current | 31 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
