770092-1 | AMP

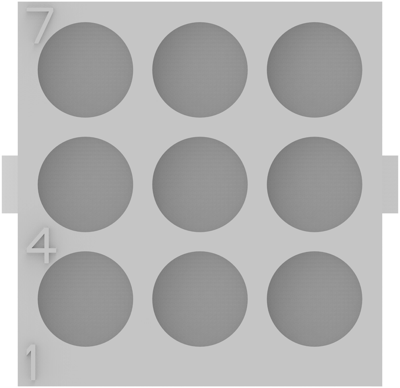

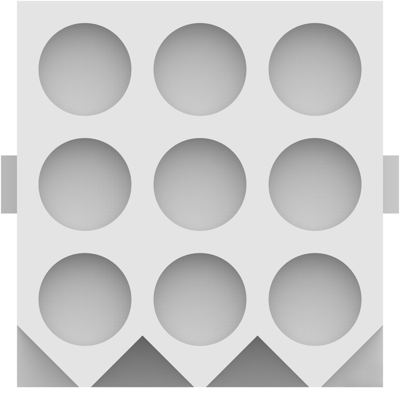

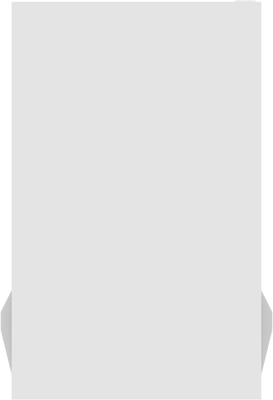

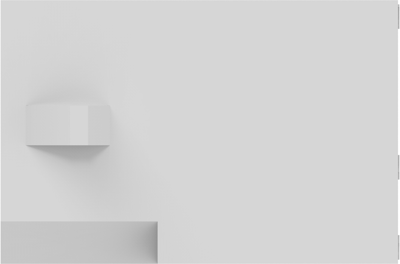

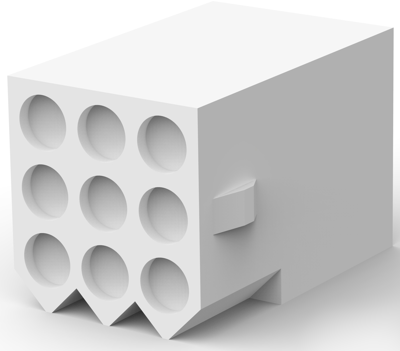

Socket housing, 9 pole, pitch 5.03 mm, straight, natural, 770092-1
Order No.: 34P6816
EAN: 4099889913545
MPN:
770092-1
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.6664 €
50 pcs.
0.6069 €
100 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 770092-1, AMP
Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Row-to-Row Spacing: 5.03 mm [0.198 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 3 | |
| Version | Buchsengehäuse | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Buchse/Stift | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Orientation | gerade | |
| Pin number | 9-polig | |
| Grid | 5.03 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
