770106-1 | AMP

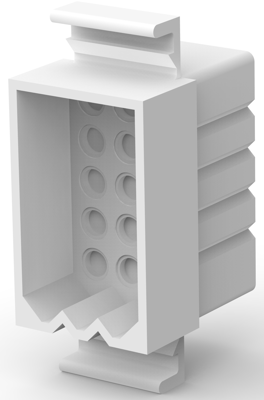

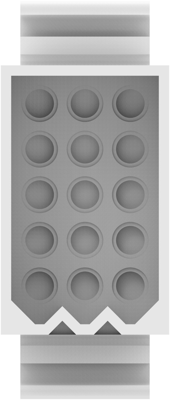

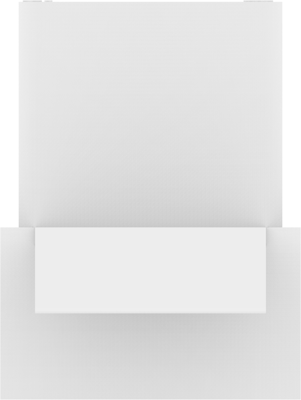

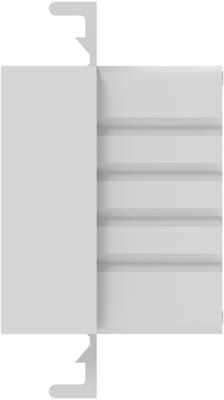

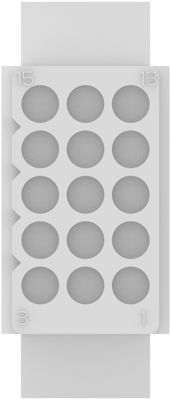

Plug housing, 15 pole, pitch 5.03 mm, straight, natural, 770106-1
Order No.: 34P6821
EAN: 4099889913590
MPN:
770106-1
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Available in 5 Days: 2,000 pcs.
Leadtime: 22 Weeks **
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2495 €
50 pcs.
1.1186 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 770106-1, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 15 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging), Panel Mount
- Contact Type: Female/Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 15
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Row-to-Row Spacing: 5.03 mm [0.198 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 5 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Buchse/Stift | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Orientation | gerade | |
| Pin number | 15-polig | |
| Grid | 5.03 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
