770156-3 | AMP

Plug housing, 4 pole, pitch 5.08 mm, straight, orange, 770156-3

Order No.: 34P6525
EAN: 4099889911855
MPN:
770156-3

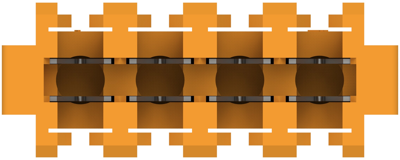

770156-3 AMP PCB Connection Systems Image 1

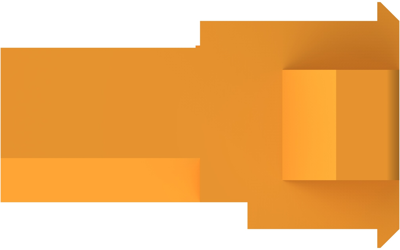

770156-3 AMP PCB Connection Systems Image 2

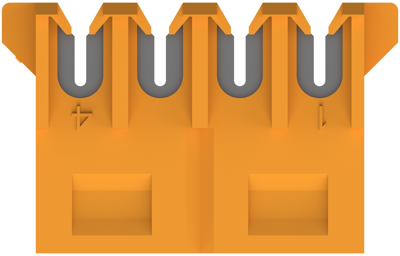

770156-3 AMP PCB Connection Systems Image 3

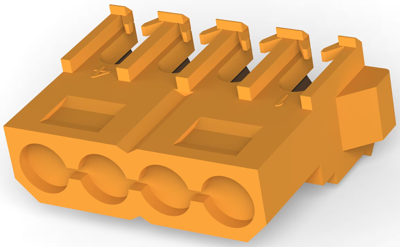

770156-3 AMP PCB Connection Systems Image 4

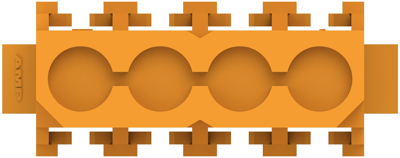

770156-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
690.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.3451 €

PCB Connection System, 770156-3, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: orange
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 13 A
  • Centerline (Pitch): 5.08 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung bestückt
Farbe orange
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 13 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 5.08 mm
Verriegelung Ja
Logistics
Ursprungsland CZ
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
