770621-1 | AMP

Pin header, 12 pole, pitch 4.14 mm, straight, white, 770621-1

Order No.: 34P9504
EAN: 4099889919677
MPN:
770621-1

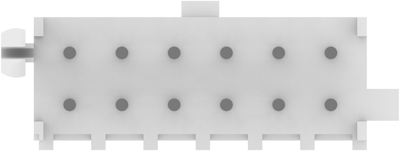

770621-1 AMP PCB Connection Systems Image 1

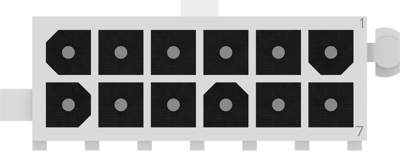

770621-1 AMP PCB Connection Systems Image 2

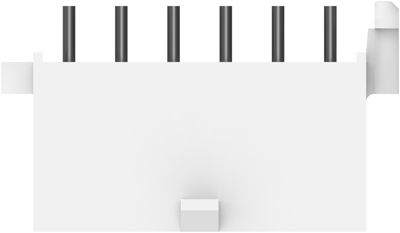

770621-1 AMP PCB Connection Systems Image 3

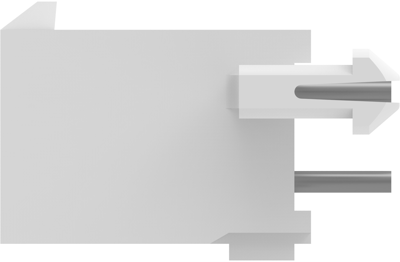

770621-1 AMP PCB Connection Systems Image 4
770621-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.9512 € *
Available: 0 pcs.
Available in 5 Days: 3,259 pcs.
Leadtime: 23 Weeks **
Total Price:
206.58 € *
Price list
Quantity
Price per unit*
70 pcs.
2.9512 €
200 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 770621-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon, Nylon 66/6
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Lötstift
Anschlussoberfläche Zinn-Blei
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe weiß
Kontaktart Stift
Kontaktoberfläche Zinn-Blei
Nennspannung 600 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 12-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland CZ
Zolltarifnummer 85366990
Compliance
RoHS konform No
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
