770970-1 | AMP

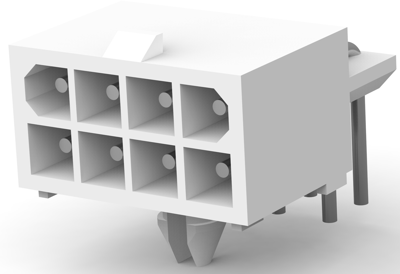

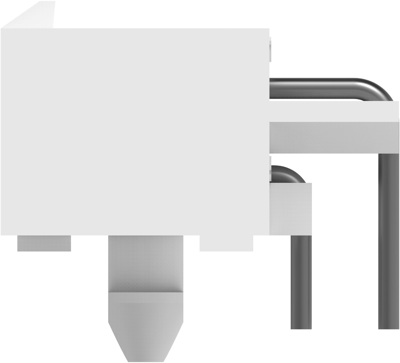

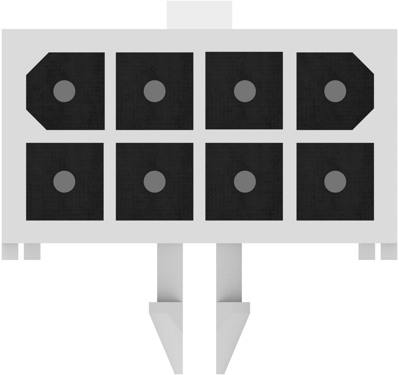

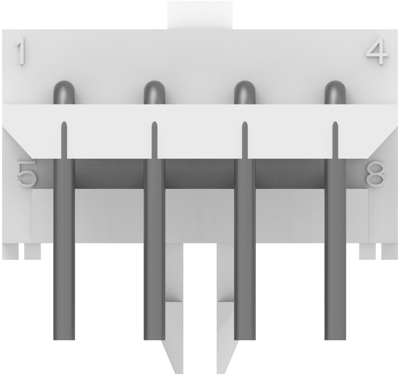

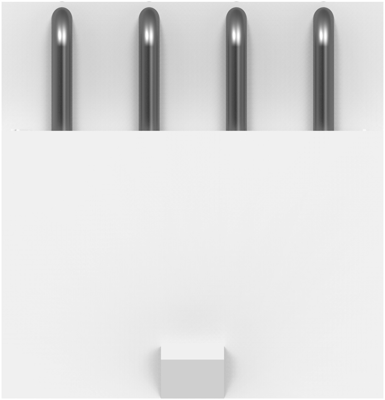

Pin header, 8 pole, pitch 4.14 mm, angled, white, 770970-1
Unit Price (€ / pc.)
2.6061 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 770970-1, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: angled
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | Lötstift | |
| Connection plating | Zinn-Blei | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | weiß | |
| Contact type | Stift | |
| contact surface | Zinn-Blei | |
| Rated voltage | 600 V | |
| Rated current | 9.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 8-polig | |
| Grid | 4.14 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
