770997-1 | AMP

Pin header, 4 pole, pitch 5.08 mm, straight, natural, 770997-1

Order No.: 34P6557
EAN: 4099889912128
MPN:
770997-1

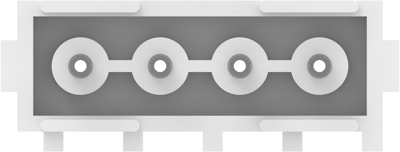

770997-1 AMP PCB Connection Systems Image 1

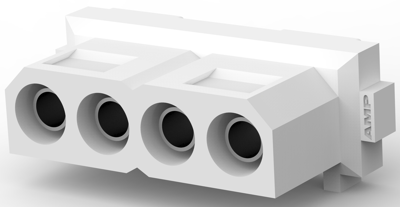

770997-1 AMP PCB Connection Systems Image 2

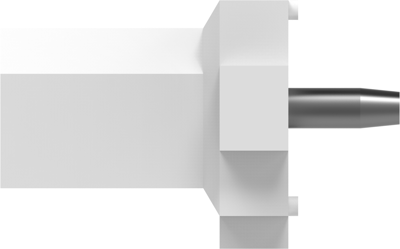

770997-1 AMP PCB Connection Systems Image 3

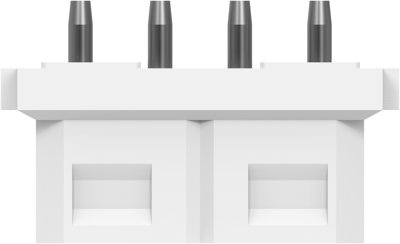

770997-1 AMP PCB Connection Systems Image 4

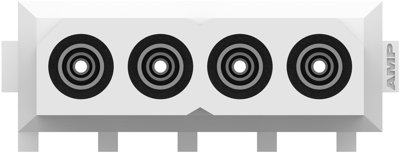

770997-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3201 € *
Available: 0 pcs.
Available in 5 Days: 2,851 pcs.
Leadtime: 19 Weeks **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.7489 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 770997-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 5.08 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 12 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 5.08 mm
Verriegelung Ja
Logistics
Ursprungsland CZ
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
