794040-2 | AMP

Pin header, 12 pole, pitch 4.14 mm, straight, white, 794040-2

Order No.: 34P9507
EAN: 4099889919684
MPN:
794040-2

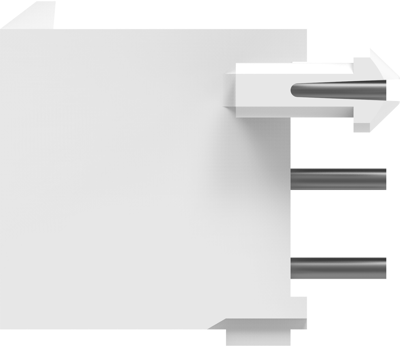

794040-2 AMP PCB Connection Systems Image 1

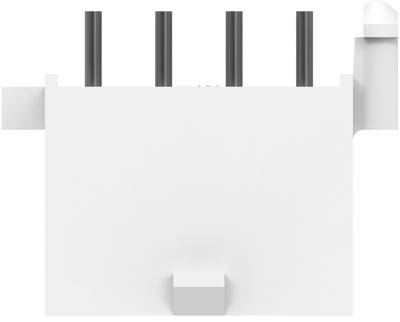

794040-2 AMP PCB Connection Systems Image 2

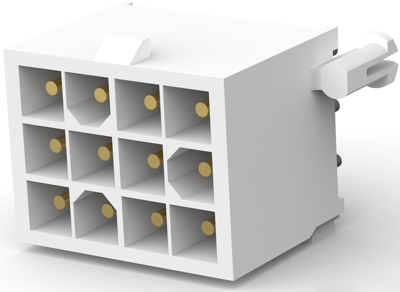

794040-2 AMP PCB Connection Systems Image 3

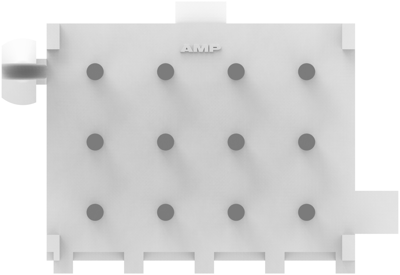

794040-2 AMP PCB Connection Systems Image 4

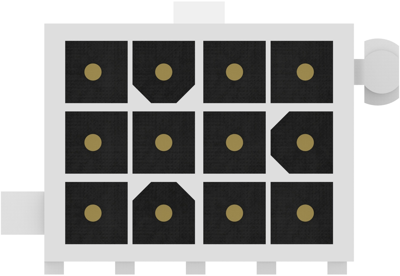

794040-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.8667 € *
Available: 0 pcs.
Available in 5 Days: 238 pcs.
Leadtime: 23 Weeks **
Total Price:
205.33 € *
Price list
Quantity
Price per unit*
35 pcs.
5.8667 €
85 pcs.
5.7715 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 794040-2, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Lötstift
Anschlussoberfläche Zinn-Blei
Anzahl der Reihen 3
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe weiß
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 600 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 12-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform No
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
