794194-1 | AMP

Plug housing, 9 pole, pitch 4.14 mm, straight, natural, 794194-1

Order No.: 34P9706
EAN: 4099889920796
MPN:
794194-1

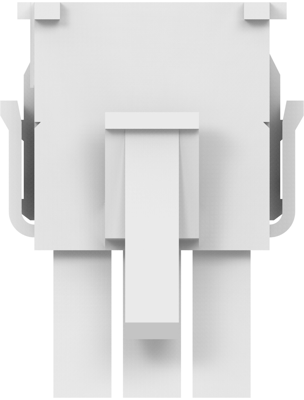

794194-1 AMP PCB Connection Systems Image 1

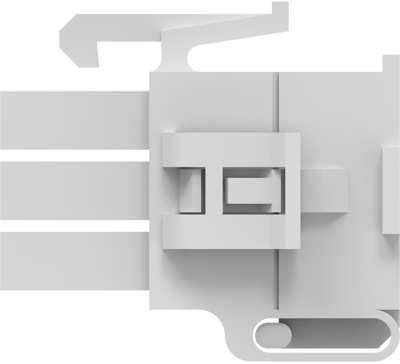

794194-1 AMP PCB Connection Systems Image 2

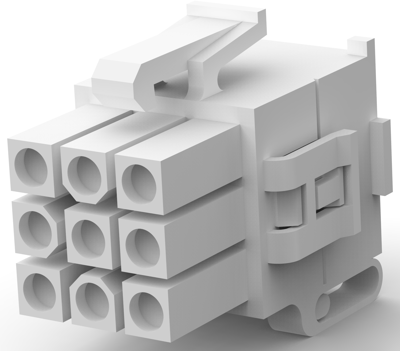

794194-1 AMP PCB Connection Systems Image 3

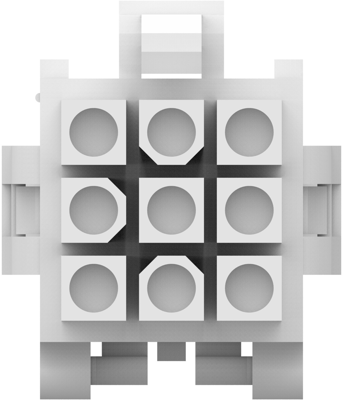

794194-1 AMP PCB Connection Systems Image 4

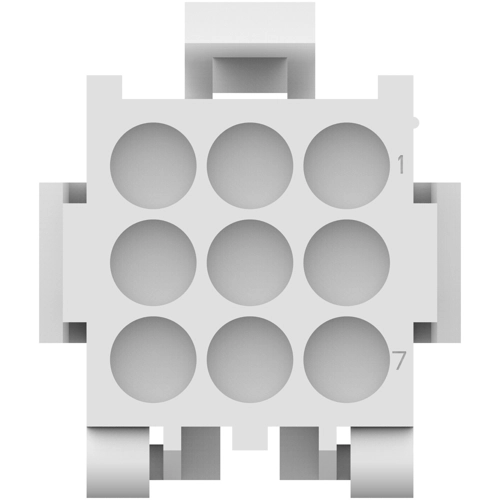

794194-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0234 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
818.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
800 pcs.
1.0234 €

PCB Connection System, 794194-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 3
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse/Stift
Nennspannung 600 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 9-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland MX
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
