794202-1 | AMP

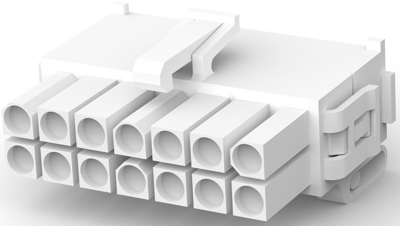

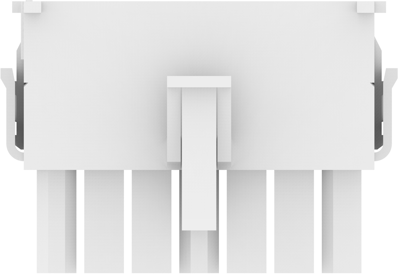

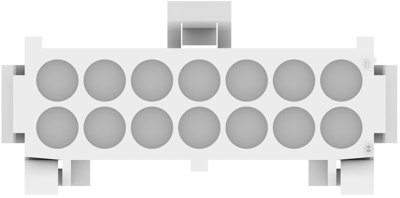

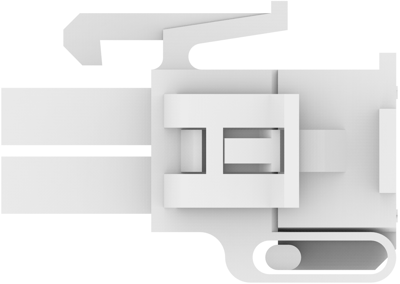

Plug housing, 14 pole, pitch 4.14 mm, straight, natural, 794202-1
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Available in 5 Days: 2,100 pcs.
Leadtime: 16 Weeks **
PCB Connection System, 794202-1, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 14 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 14
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.162 in]
- Sealable: No
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse/Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 9.5 A | |
| Orientierung | gerade | |
| Polzahl | 14-polig | |
| Rastermaß | 4.14 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
