794212-1 | AMP

Plug housing, 22 pole, pitch 4.14 mm, straight, natural, 794212-1

Order No.: 34P9725
EAN: 4099889920963
MPN:
794212-1

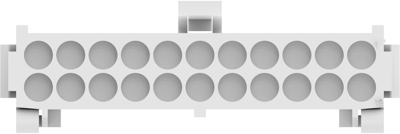

794212-1 AMP PCB Connection Systems Image 1

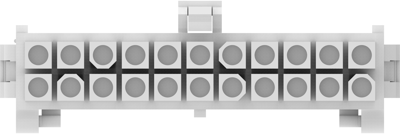

794212-1 AMP PCB Connection Systems Image 2

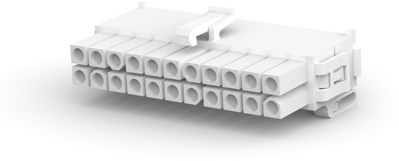

794212-1 AMP PCB Connection Systems Image 3

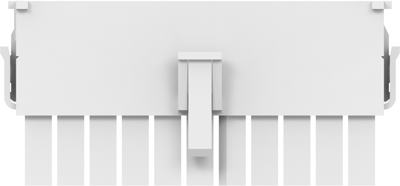

794212-1 AMP PCB Connection Systems Image 4

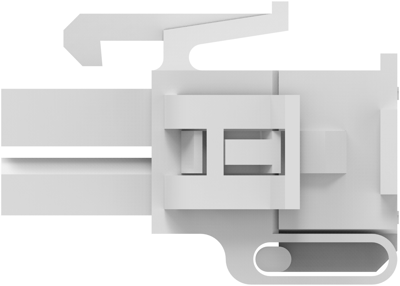

794212-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3201 € *
Available: 0 pcs.
Available in 5 Days: 1,031 pcs.
Leadtime: 16 Weeks **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.7489 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 794212-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 22 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 22
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.162 in]
  • Sealable: No
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse/Stift
Nennspannung 600 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 22-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
