794236-1 | AMP

Pin header, 4 pole, pitch 5.08 mm, straight, white, 794236-1

Order No.: 34P6553
EAN: 4099889912081
MPN:
794236-1

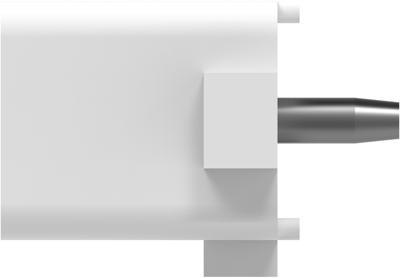

794236-1 AMP PCB Connection Systems Image 1

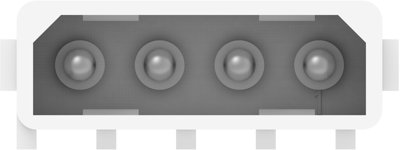

794236-1 AMP PCB Connection Systems Image 2

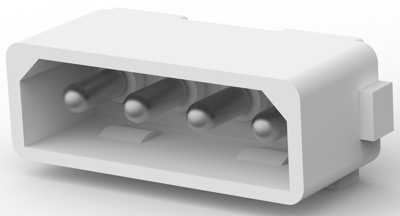

794236-1 AMP PCB Connection Systems Image 3

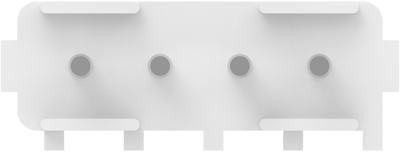

794236-1 AMP PCB Connection Systems Image 4

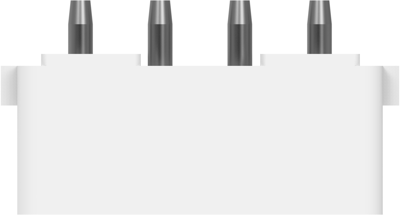

794236-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
761.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.3808 €

PCB Connection System, 794236-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 5.08 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection solder pin
Connection plating pre-tinned
Number of rows 1
Version pin header
Additional parts equipped
Colour white
Contact type pin
contact surface pre-tinned
Rated voltage 250 V
Rated current 12 A
Orientation straight
Pin number 4 pole
Grid 5.08 mm
Type of locking Yes
Logistics
Country of origin MX
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
