794239-1 | AMP

Plug housing, 3 pole, pitch 4.14 mm, straight, natural, 794239-1

Order No.: 34P9693
EAN: 4099889920666
MPN:
794239-1

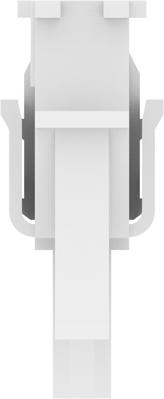

794239-1 AMP PCB Connection Systems Image 1

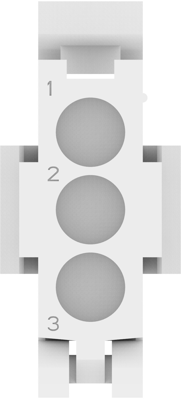

794239-1 AMP PCB Connection Systems Image 2

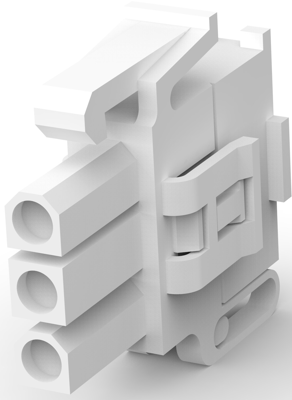

794239-1 AMP PCB Connection Systems Image 3

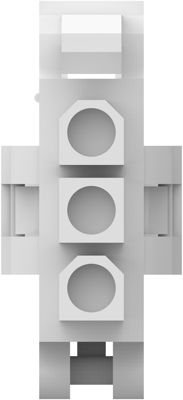

794239-1 AMP PCB Connection Systems Image 4

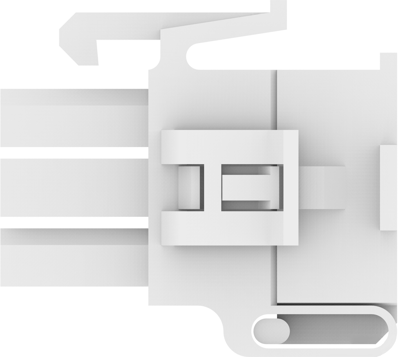

794239-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Available in 5 Days: 1,400 pcs.
Leadtime: 23 Weeks **
Total Price:
0.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.7616 €

PCB Connection System, 794239-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 4.14 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse/Stift
Nennspannung 600 V
Orientierung gerade
Polzahl 3-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland MX
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
