794535-1 | AMP

Plug housing, 6 pole, pitch 6.35 mm, straight, black, 794535-1

Order No.: 35P4999
EAN: 4099889936414
MPN:
794535-1

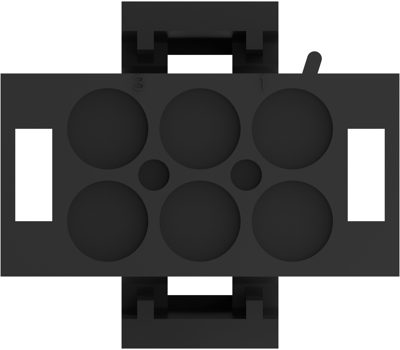

794535-1 AMP PCB Connection Systems Image 1

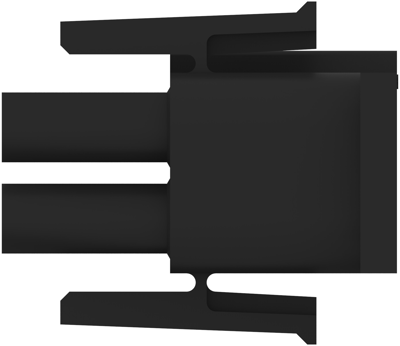

794535-1 AMP PCB Connection Systems Image 2

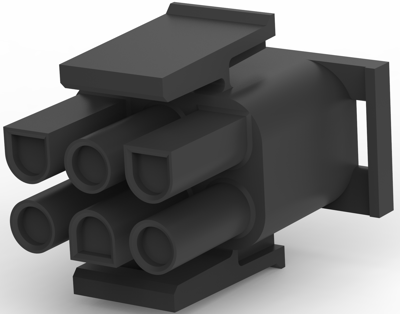

794535-1 AMP PCB Connection Systems Image 3

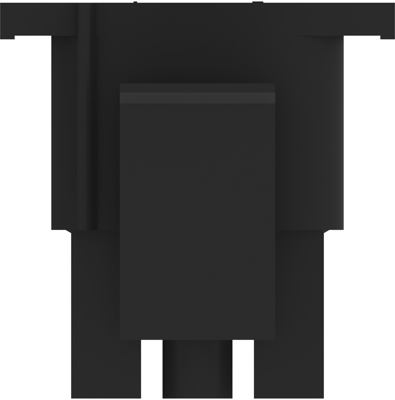

794535-1 AMP PCB Connection Systems Image 4

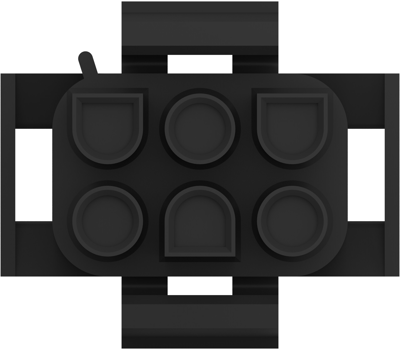

794535-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Available in 5 Days: 1,800 pcs.
Leadtime: 8 Weeks **
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
10 pcs.
1.3447 €
50 pcs.
1.2019 €
100 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 794535-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 6
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Connection Crimpanschluss
Number of rows 2
Version Steckergehäuse
Additional parts unbestückt
Colour schwarz
Contact type Buchse/Stift
Rated voltage 600 V
Rated current 36 A
Orientation gerade
Pin number 6-polig
Grid 6.35 mm
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
