794616-4 | AMP

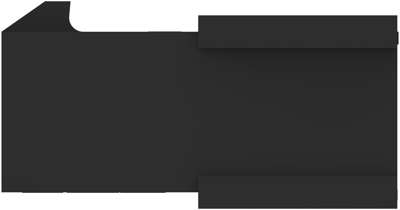

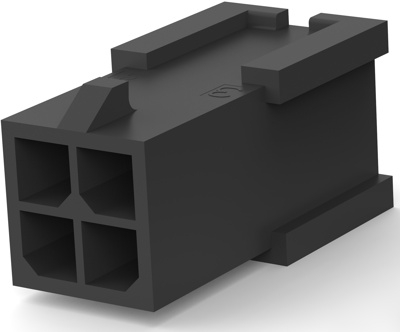

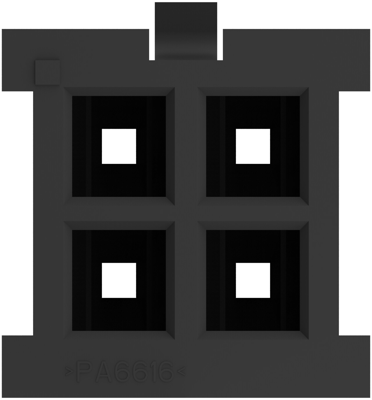

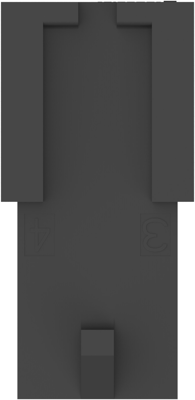

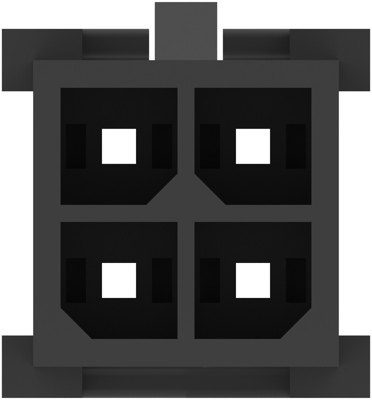

Plug housing, 4 pole, pitch 3 mm, straight, black, 794616-4
Unit Price (€ / pc.)
0.5593 € *
Available: 139 pcs.
Leadtime: 3 Weeks **
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
100 pcs.
0.5117 €
300 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.
Male connector housings, dual-row, bare, type ..-794.
Made of Nylon, flame retardant to UL 94 V-0.
Technical attributes (type, number of poles, length): 0-0794616-4, 4-pole, L 6.85 mm
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 3 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
