794805-1 | AMP

Plug housing, 4 pole, pitch 4.17 mm, straight, white, 794805-1

Order No.: 71F7322
EAN: 4099891011857
MPN:
794805-1
0-0794805-1

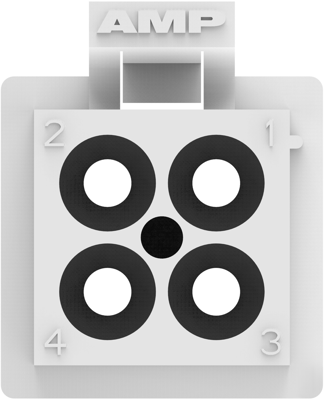

794805-1 AMP PCB Connection Systems Image 1

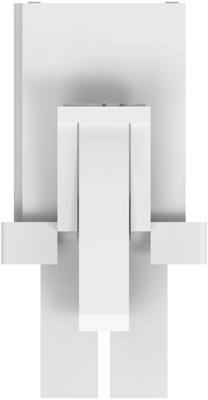

794805-1 AMP PCB Connection Systems Image 2

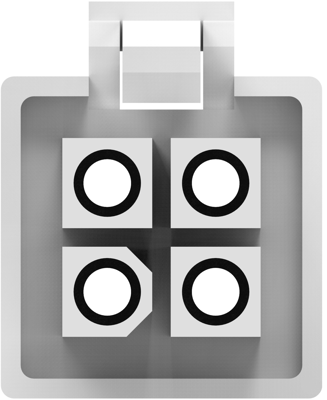

794805-1 AMP PCB Connection Systems Image 3

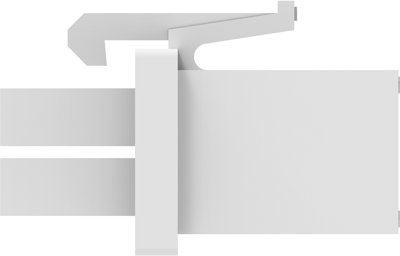

794805-1 AMP PCB Connection Systems Image 4

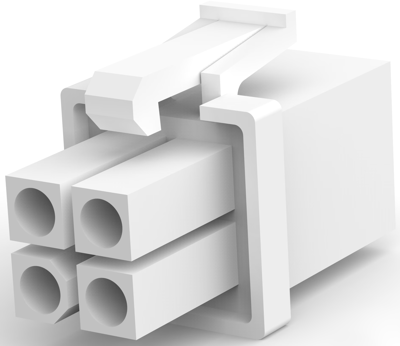

794805-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 468 pcs.
Leadtime: 24 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
100 pcs.
1.2138 €
300 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable connectors, bare, 2 to 10 poles, series Mini-Universal-Mate-N-Lok, splashproof, type TE Connectivity/AMP.

Made of nylon, compliant with UL 94 V-0; Housing: polarized. Suitable for use as mixed plug and receptacle housing. Current rating: max. 9.5 A. Operating voltage: 600 VAC.

Connector housings, interlocking with receptacle housing, type 0-0794.

Technical attributes (type, number of poles): 0-0794805-1, 4-pole

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe weiß
Kontaktart Buchse/Stift
Nennspannung 600 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 4.17 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
