794895-1 | AMP

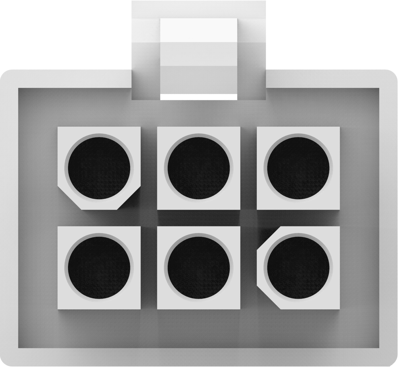

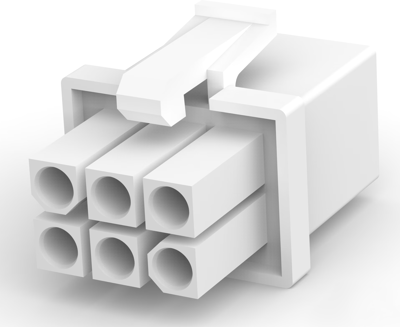

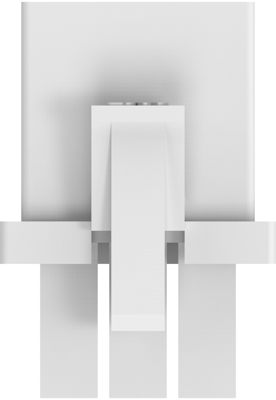

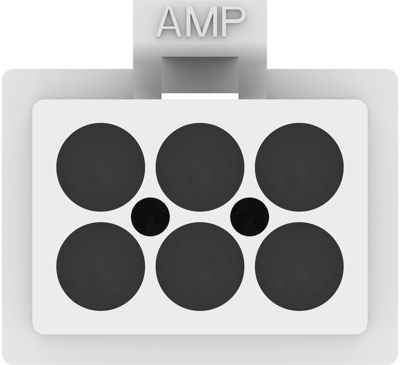

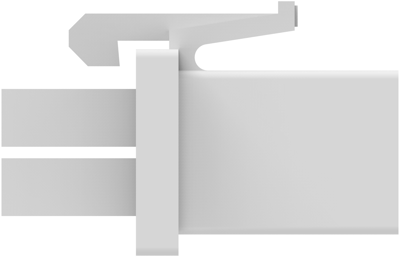

Plug housing, 6 pole, pitch 4.14 mm, straight, white, 794895-1
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: On Request **
Cable connectors, bare, 2 to 10 poles, series Mini-Universal-Mate-N-Lok, splashproof, type TE Connectivity/AMP.
Made of nylon, compliant with UL 94 V-0; Housing: polarized. Suitable for use as mixed plug and receptacle housing. Current rating: max. 9.5 A. Operating voltage: 600 VAC.
Connector housings, interlocking with receptacle housing, type 0-0794.
Technical attributes (type, number of poles): 0-0794895-1, 6-pole
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | white | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Rated current | 9.5 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 4.14 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
