8-215079-0 | AMP

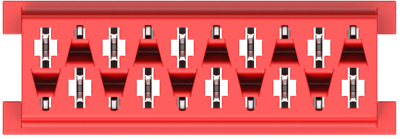

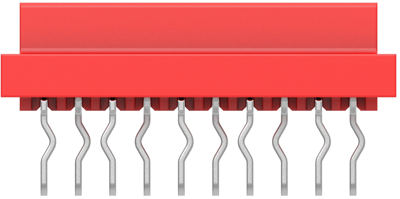

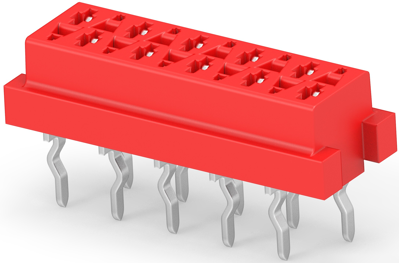

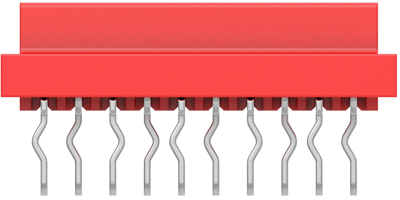

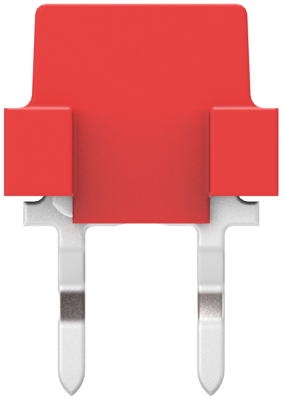

Socket header, 10 pole, pitch 1.27 mm, straight, red, 8-215079-0
Unit Price (€ / pc.)
1.7850 € *
Available: 2,125 pcs.
Available in 5 Days: 3,725 pcs.
Leadtime: 39 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
25 pcs.
1.5232 €
100 pcs.
1.4042 €
250 pcs.
1.3209 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Female connectors, straight, type ..-0215079.
For PCB mounting.
Technical attributes (type, number of poles, dimension B): 8-0215079-0, 10-pole, B 14.7 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 100 V | |
| Rated current | 1 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 1.27 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
