8-215460-6 | AMP

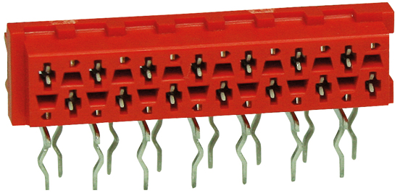

Socket header, 16 pole, pitch 1.27 mm, angled, red, 8-215460-6
Unit Price (€ / pc.)
2.8322 € *
Available: 0 pcs.
Available in 5 Days: 1,250 pcs.
Leadtime: 24 Weeks **
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8322 €
10 pcs.
2.6061 €
50 pcs.
2.3443 €
100 pcs.
2.1063 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Sub-D PCB female connectors, angled, type ..-0215460.
For PCB mounting.

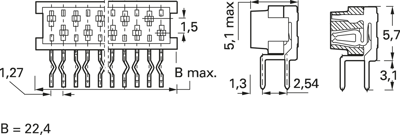

Technical attributes (type, number of poles, dimension B): 8-0215460-6, 16-pole, B 22.4 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 16-polig | |
| Grid | 1.27 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
