826470-8 | AMP

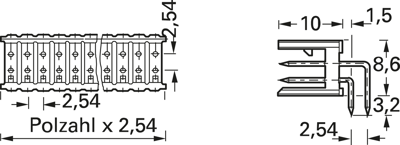

Pin header, 16 pole, pitch 2.54 mm, angled, black, 826470-8

Order No.: 59F4067
EAN: 4099891005948
MPN:
826470-8
0-0826470-8
Series: AMPMODU
826470-8 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
3.8080 € *
Available: 0 pcs.
Available in 5 Days: 21,505 pcs.
Leadtime: 41 Weeks **
Total Price:
3.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8080 €

Pin headers with protective collar, type TE Connectivity/AMP Modu II.

With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.

With dual-row angled solder pins, type ..-0826.

Type: 0-0826470-8, 2 x 8-pole

Technical specifications
Connection Leiterplattenanschluss
Connection plating verzinnt
Number of rows 2
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface vergoldet
Rated current 5 A
Orientation abgewinkelt
Pin number 16-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin IN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
