826576-5 | AMP
Pin header, 5 pole, pitch 3.96 mm, straight, green, 826576-5
Unit Price (€ / pc.)
3.7723 € *
Available: 0 pcs.
Available in 5 Days: 1,282 pcs.
Leadtime: 43 Weeks **
Total Price:
3.77 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7723 €
10 pcs.
3.4629 €
50 pcs.
3.1178 €
100 pcs.
2.8084 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers, 3 to 20 poles, type Modu I.
With 3.96 mm grid. For PCBs up to 1.6 mm thickness. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: brass contacts, contact area 0.8 µ gold-plated on nickel primer (dimension F) and the solder area is 2.5 µ tinned over nickel, or with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

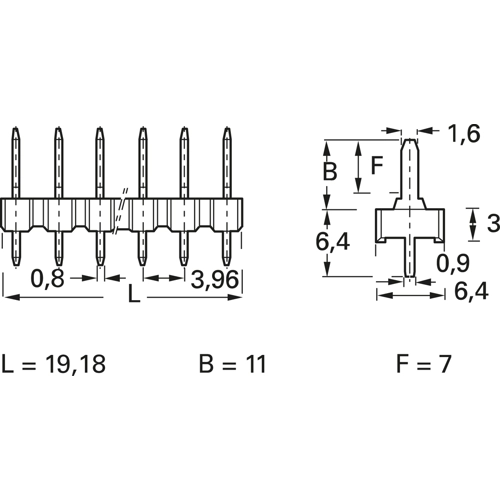

Tinned, pin length B 11.0 mm, type ..-0826.
Pins tinned in the contact and solder area; Dimension F: 7.0 mm.
Type: 0-0826576-5, 5-pole, L 19,18 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Breakable | Yes | |
| Colour | grün | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
