826658-8 | AMP
Pin header, 16 pole, pitch 2.54 mm, straight, green, 826658-8
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.5347 €
50 pcs.
2.2848 €
100 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale

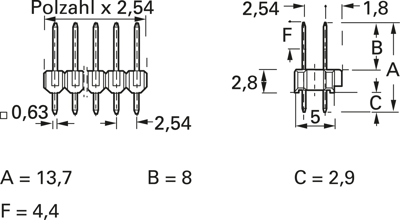

Gold-plated, pin length B 8.0 mm, type ..-0826.
with 2.54 mm grid. Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.
Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 4.4 mm, tinned solder area (2.5 µm tin over 1.3 µm Ni). Dimension A: 13.7 mm. Dimension C: 2.9 mm.
Type: 0-0826658-8, 2 x 8-pole
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Breakable | Yes | |
| Colour | grün | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 16-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
