826851-3 | AMP

Pin header, 8 pole, pitch 6.35 mm, straight, natural, 826851-3

Order No.: 35P4898
EAN: 4099889935479
MPN:
826851-3

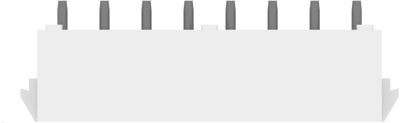

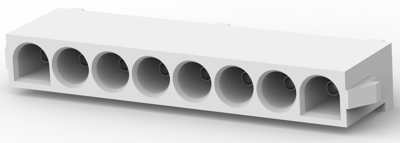

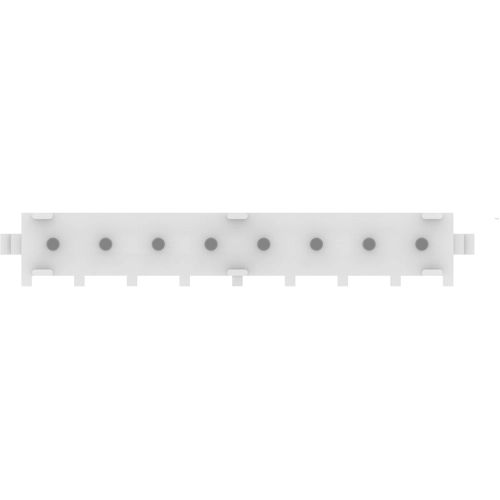

826851-3 AMP PCB Connection Systems Image 1
826851-3 AMP PCB Connection Systems Image 2
826851-3 AMP PCB Connection Systems Image 3
826851-3 AMP PCB Connection Systems Image 4
826851-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Available: 0 pcs.
Available in 5 Days: 4,648 pcs.
Leadtime: 21 Weeks **
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5347 €
50 pcs.
2.2729 €
100 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 826851-3, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: PA 6.6
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Lötstift
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour natur
Contact type Buchse
contact surface verzinnt
Rated voltage 600 V
Rated current 12 A
Orientation gerade
Pin number 8-polig
Grid 6.35 mm
Type of locking Ja
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
