828214-8 | AMP
Pin header, 8 pole, pitch 2.54 mm, straight, green, 828214-8
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Available in 5 Days: 1,143 pcs.
Leadtime: 8 Weeks **
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
25 pcs.
3.8913 €
150 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers for PCB mounting, single-row, TE Connectivity AMP Modu II, type ..-0825../..-0828.

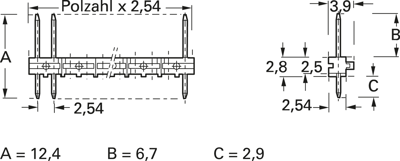

With 2.54 mm grid. Suitable for parallel stacking. With 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated or 2.5 µm tinned on nickel primer. Tinned solder pins. Dimensions: A 12.4 mm, B 6.7 mm, C 2.9 mm.
Straight single-row, type ..-0825../..-0828.
Technical attributes (type, number of poles, contact finish): 0-0828214-8, 8-pole, tinned
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | Yes | |
| Colour | green | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
